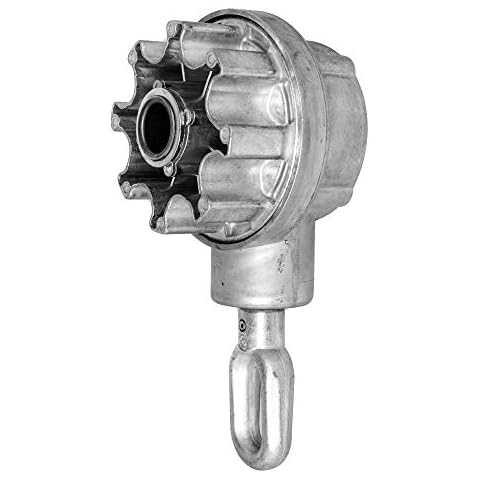

DIWARO.® Taper wheel gear for awnings, 3:1, with end stop, for 78 mm groove tube, awning gearbox
- Thanks to the lift limiter, the cloth is also well protected at all times. After a maximum of 14 revolutions of the cloth shaft, the gear is locked and thus prevents incorrect winding.
- The bevel wheel gearbox 410F008 with a reduction of 3:1 with groove tube adapter can be used for articulated arm awnings. The low reduction ensures quick operation, but the effort is higher than with greater reduction.
- reduction 3:1 maximum output torque 12 Nm efficiency 0.66 end stop (AB) after maximum 14 revolutions pitch circle 48 mm attachment M6 thread drive eyelet oval output 75.5 mm (for 78 groove tube) blank colour (uncoated)
