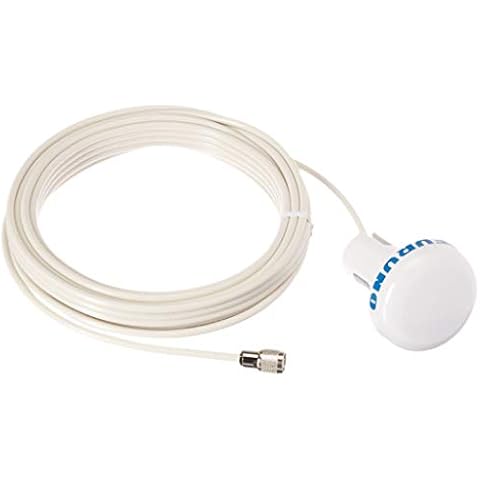

Furuno GPA017 GPS Antenna with 10 Meter Cable
- 1"-14 thread mount required includes 10 Meter cable with TNC connector
- Item Weight 1.3; Widerange of power supply from 4VDC to 13VDC; Easy installation by using optional antenna fixing bracket; Input Frequency: 1575.42MHz1.023MHz; Antenna Gain: 2.0dBi (at 90 elev. angle) / -4.0dBi (at 10 elev. angle); Supply Voltage: 4 to 5.5VDC; Power Consumption: 25mA; Operating Temperature: -25C to 70C; Storage Temperature: -35C to 75C; Connector Type: TNC-J
- The antenna consists of the antenna for receiving GPS signal, the filter for band limitation and the preamplifier for signal amplification
