YHDC

5.0

Buy on Amazon

* We independently evaluate all recommended products and services. If you click on links we provide, we may receive compensation.

Products of the YHDC range from £4.24 to £20.54, so your total expense can vary depending on the products chosen, which allows you to choose products according to your budget. YHDC provides their products for a reasonable price, which means the products cost around £9.95 on average. They are affordable options to make your shopping much easier.

YHDC offers a variety of products, there are 306 products available, 19 of which were analyzed in detail and recommended to customers. The YHDC review aims to sharpen your understanding of the brand and introduces you to their bestselling products. Just keep reading!

YHDC Best Sellers

Last Updated: 14 Jun 2023

YHDC SCT 013 Input 5A-100A Output 1V/50mA Split core current sensor AC current transformer 3.5 mm blue (20A/1V)

Power Transformers

Buy on Amazon Find on eBay

Model: SCT013-020; Core Material: Ferrite; Working Temperature: -25-60C

Product Name: Non-invasive AC Current Transformer

Total Size: 5.7 x 3.2 x 2.1cm/ 2.2" x 1.3" x 0.8"(L*W*T); Cable Length: 1m/ 39.4"

Opening Size: 13 x 13mm/ 0.5 x 0.5"(L*W); Output Plug: 3.5mm; Dielectric Strength: 6000V AC/1min

External Material: Plastic; Rated Input Current: 20A; Rated Output Current: 1V

YHDC Split Core Current Sensor SCT010 80A/0.333V Non-invasive Current Transducer AC in black (80A/0.333V)

Power Transformers

Buy on Amazon Find on eBay

Model: SCT 010; Material of core: Ferrite; Work temperature: -25°C ~ +60°C

Product Name: Split Core AC Current Transformer

built-in TVS. Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.

Total Size: 22.8mm x 40mm x 25.8mm

Specifications of lead wire: 0.3mm*2 black and white twisted pair, Cable Length: 50cm

YHDC Current Transformer SCT-019 200A/0.333V Split Core Current Sensor

Power Transformers

Buy on Amazon Find on eBay

ModExternal Material: Plastic; Rated Input Current: 100A; Rated Output Current: 0.333Vel: SCT 019-200; Core Material: Permalloy; Working Temperature-25℃～+70℃

Product Name: Split Core AC Current Transformer

Total Size: 5.08 x 5.33 x 1.55cm Cable Length: 2m

Opening size 19mmx19mm, compatible to foreign products. Epoxy encapsulated, leading wire output(2m).

External Material: Plastic; Rated Input Current: 200A; Rated Output Current: 0.333V

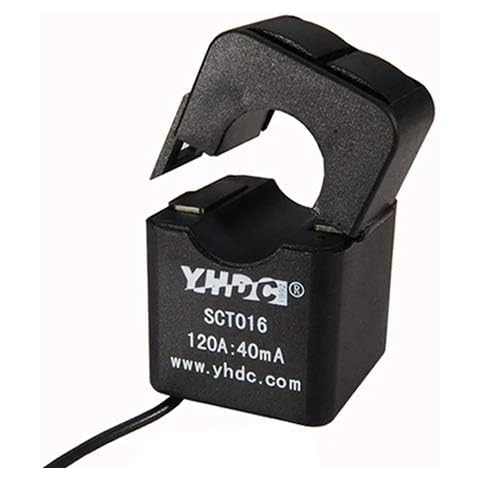

YHDC Current Transformer SCT016 120A/40MA Split Core Current Sensor

Power Transformers

Buy on Amazon Find on eBay

Model: SCT016; Material of core: Ferrite; Work temperature: -25℃～+70℃

Product Name: Split Core Current Transformer

Total Size: 30mm x 46mm x 31mm

Opening size 16mmx16mmSpecifications of lead wire: 0.30mm*2 black and white twisted pair, the length of lead wire 50cm

External Material: Plastic; Rated Input Current: 100A; Rated Output Current: 0.333V

YHDC split core current transformer SCT010T-D 50/5V 2%

Current Sensors

Buy on Amazon Find on eBay

Output ripple voltage : ≤5% Output voltage Material of core: Ferrite Work temperature: -25 ℃ ~ + 60 ℃

Split core current transformer Model: SCT010T-D Work voltage: 720V Rated input: 50A Max. Input: 100%（continuous)/150%(1min) Rated output: 5V DC Accuracy: ±2 %

Storage temperature: -30 ℃ ~ + 90 ℃ Frequency range: 50Hz～60Hz Dielectric strength: AC 3500V/1min

Output impedance: 7kΩ Isolation impedance :＞100MΩ(500V DC) Weight: 42g

5V DC output, split core current transformer. Suspended installation, crimping terminal output.

YHDC Split Core Current Transformer SCT013-RJ45 100A/50mA Non-invasive AC Current Sensor in white

Buy on Amazon Find on eBay

Model: SCT013-RJ45; Material of core: Ferrite; Work temperature: -25℃～+70℃

Product Name: Split Core Current Transformer

Total Size: 32mm x 57mm x 22mm

Opening size 13mmx13mm, RJ45 Interface output

External Material: Plastic; Rated Input Current: 100A; Rated Output Current: 50mA

YHDC through core type precision current transformer TA17L-04 20A:10mA

Power Transformers

Buy on Amazon Find on eBay

Accuracy: ±1 % Linearity: ≤0.2% Fire resistance property: UL94-V0 Mounting type：Suspension Material of core: Nanocrystalline

Through core type precision current transformer Model: TA17L-04 Rated input: 0-20A Rated output: 0-10 mA Turns ratio: 1：2000

Standard：GB1208-2006 Work temperature: -35℃～+85℃ Storage temperature: -45℃～+95℃ Frequency range: 20Hz-20KHz

Dielectric strength: ≥3.5KV 50Hz 1min Phase difference: ≤20' Max: Sampling resistance: 300Ω Weight: 19.1 g

Characteristics: Both PCB welding and leading wire output mode are available. Fully enclosed, Nanocrystalline core.

YHDC Split Core Current Transformer Non-invasive SCT-013-015 15A /1V±1%

Current Sensors

Buy on Amazon Find on eBay

Opening size 13mmx13mm.Flame resistance: UL94-V0 Standard: GB1208-2006

Split core current transformer Model: SCT013-15 Rated input: 15A Max. Input: 40A Rated output: 1V Accuracy: ±1 %

Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃

Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g

Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min

YHDC split core current transformer SCT013 variations: input 5A, 10A, 15A, 20A, 25A, 30A, 50A, 60A, 100A output 1V, 0.333V ±1% set 3pcs (SCT013-015 15A/1V set 3pcs)

Buy on Amazon Find on eBay

Frequency range: 50Hz-1KHz; Dielectric strength: AC 3500V/1min

Fire resistance property: UL94-V0; Standard:GB1208-2006; Work voltage:720V; Work temperature: -25 ℃ ~ + 70 ℃; Storage temperature: -30℃～+90℃

Weight: 50g

Rated input: 5A / 10A / 15A / 20A / 25A / 30A / 50A / 60A / 100A; Max. Input: 30A / 35A / 40A / 50A / 55A / 60A / 70A / 75A / 120A; Rated output: 1V / 0.333V

Accuracy: ±1%; Linearity: ≤0.2%; Max:Sampling resistance: 10Ω

YHDC Split Core Current Transformer Non-invasive Sensor SCT013-000 100A/50mA

Current Sensors

Buy on Amazon Find on eBay

Core material: ferrite Flame resistance: UL94-V0 Standard: GB1208-2006

Split core current transformer Model: SCT013-000 Rated input: 100A Max. Input: 120A Rated output: 50mA Accuracy: ±1 % Linearity: ≤0.2 %

Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃

Opening size 13mm * 13mm, compatible to foreign products, leading wire 1 metre, standard Φ3.5 three core plug output, current & voltage two types of output. (Patent No. ZL 2015 3 0060067.X

Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min Max sampling resistance: 10Ω Weight: 50g

YHDC Split Core Current Transformer Non-invasive SCT-013-030 30A /1V±1%

Buy on Amazon Find on eBay

Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V

YHDC SCT013-030 Split Core Current Transformer br>Rated input: 30A Max. Input:60A Rated output: 1V Accuracy: ±1 %

Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min

Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g

Characteristics: Openning size 13mm*13mm,1m leading wire, standard Φ3.5 three-core plug output. Have two kinds of output type: Current output type and voltage output type. Purpose： Used for current measurement, monitor and protection for AC motor,lighting equipment, air compressor etc

YHDC split core current transformer SCT024TS 100A 200A 400A/5A 1% (SCT024TS-100A/5A 1%)

LED Driver Transformers

Buy on Amazon Find on eBay

Material of core: Silicon steel sheet Fire resistance property: UL94-V0 Work voltage :660V Work temperature: -25℃～+60℃

Split core current transformer Model：SCT024TS Rated input: 100A/200A/400A Rated output: 5A Turns ratio: 1：2000 Accuracy: 1 %

Storage temperature: -30℃～+90℃ Frequency range: 50Hz～60Hz Dielectric strength: 3.5KV 50Hz 1min Linearity: ≤0.2%

Linearity: ≤0.2% Phase error: +0.5±0.5° Max sampling resistance: 8Ω Weight: 204g

Input true RMS padlock hanging installation, crimp terminal output. No need outside power. Built-in converter and overload protection. Purpose： industrial control machine, PLC, industrial instrumentation interface. Mechanical strength： the number of switching is not less than 150 times(test at 25℃)

YHDC Split Core Current Transformer Non-invasive SCT-013-100 100A /1V±1%

Power Transformers

Buy on Amazon Find on eBay

Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃

SCT013-100 Split Core Current Transformer Rated input: 100A Max. Input:120A Rated output: 1V Accuracy: ±1 %

Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min

Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g

Openning size 13mm*13mm,1m leading wire, standard Φ3.5 three-core plug output. Have two kinds of output type: Current output type and voltage output type. Purpose： Used for current measurement, monitor and protection for AC motor,lighting equipment, air compressor etc

YHDC Split Core Current Transformer SCT013-050 50A/1V

Power Transformers

Buy on Amazon Find on eBay

Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃

SCT013-050 Split Core Current Transformer Rated input: 50A Max. Input:70A Rated output: 1V Accuracy: ±1 %

Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min

Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g

YHDC SCT013-005 5A/1V Split Core Sensor Non-invasive AC Current Transformer 3.5mm Blue

Power Transformers

Buy on Amazon Find on eBay

Model: SCT013-005; Core Material: Ferrite; Working Temperature: -25-60C

Product Name: Non-invasive AC Current Transformer

Total Size: 5.7 x 3.2 x 2.1cm/ 2.2" x 1.3" x 0.8"(L*W*T); Cable Length: 1m/ 39.4"

Opening Size: 13 x 13mm/ 0.5 x 0.5"(L*W); Output Plug: 3.5mm; Dielectric Strength: 6000V AC/1min

External Material: Plastic; Rated Input Current: 5A; Rated Output Current: 1V

YHDC Split core current transformer SCT016T 120A/40mA 1%

Buy on Amazon Find on eBay

Accuracy: 0.5/1 % Linearity: ≤0.2% Max resistance: 5.1Ω Installation method: zawieszenie Material of core: Ferryt

Split core current transformer SCT016T Open Loop Rated input: 120A Measured range: 160A Rated output: 40mA Turns ratio: 1：3000

Storage temperature: -30 ℃ ~ + 90 ℃ Frequency: 50 Hz ~ 1KHz Dielectric strength: 3,5KV 50Hz 1min Weight: 70g

Hanging installation, crimping terminal output.

Flame resistance: UL94-V0 Working voltage: 660V Working temperature: -25 ℃ ~ + 60 ℃

YHDC Split Core Current Sensor SCT016 120A/40mA Current Transformer in Black color

LED Driver Transformers

Buy on Amazon Find on eBay

Model: SCT016; Material of core: Ferrite; Work temperature: -25℃～+70℃

Product Name: Split Core Current Transformer

Total Size: 30mm x 46mm x 31mm

Opening size 16mmx16mm, Specifications of lead wire: 0.30mm*2 black and white twisted

External Material: Plastic; Rated Input Current: 120A; Rated Output Current: 40mA

YHDC Split Core Current Trrnaformer SCT013-010 10A/1V

Current Sensors

Buy on Amazon Find on eBay

Opening size 13mmx13mm.Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V

Split core current transformer Model: SCT013-10 Rated input: 10A Max. Input: 35A Rated output: 1V Accuracy: ±1 %

Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃

Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min

Accuracy: ±1 % Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g

YHDC Split Core Current Transformer SCT013-030 30A/1V

LED Driver Transformers

Buy on Amazon Find on eBay

Model: SCT013

Condition:Brand new and high quality

Two form of output current, voltage (voltage output built-in the sampling resistor)

Non-linearity +/-3%(10%-120% rated input current)

Non-invasive current transformer;Meet UL94-V0 flame retardant properties

YHDC FAQs

How much do YHDC products cost?

YHDC SCT 013 Input 5A-100A Output 1V/50mA Split co... is the top 1 product we recommend in the YHDC buying guide, which is priced at £7.87, you can view it on Amazon page.
YHDC Split Core Current Sensor SCT010 80A/0.333V N... is one of the popular products we recommend in the YHDC buying guide, which is priced at £6.89, you can view it on Amazon page.
YHDC through core type precision current transform... is the cheapest product in the YHDC picks list, which is priced at £4.24, you can view it on Amazon page.
YHDC split core current transformer SCT013 variati... is the most expensive product in the YHDC picks list, which is priced at £20.54, you can view it on Amazon page.

Where can you buy YHDC products?

You can purchase YHDC products from the seller poweruc, over the last 12 months, the seller has received honest feedback from 5 consumers, and the average rating is 5. The shop has a good reputation so you can purchase from it with confidence.

What do customers think of YHDC?

We did a questionnaire online and hundreds of customers participated in this survey, the consumers rated the products in terms of quality, user experience and other aspects. The results of the questionnaire demonstrate how much customers appreciate their products. It's safe to say that most customers are overwhelmingly satisfied with their purchases and YHDC is worth your consideration.

Who are the manufacturers of the YHDC products?

Most of the YHDC products are produced by Dechang Electri, s.l and Dechang Electronic Co., Ltd. The manufacturer provides YHDC with a steady supply of products, and they have a good cooperative relationship with each other.
